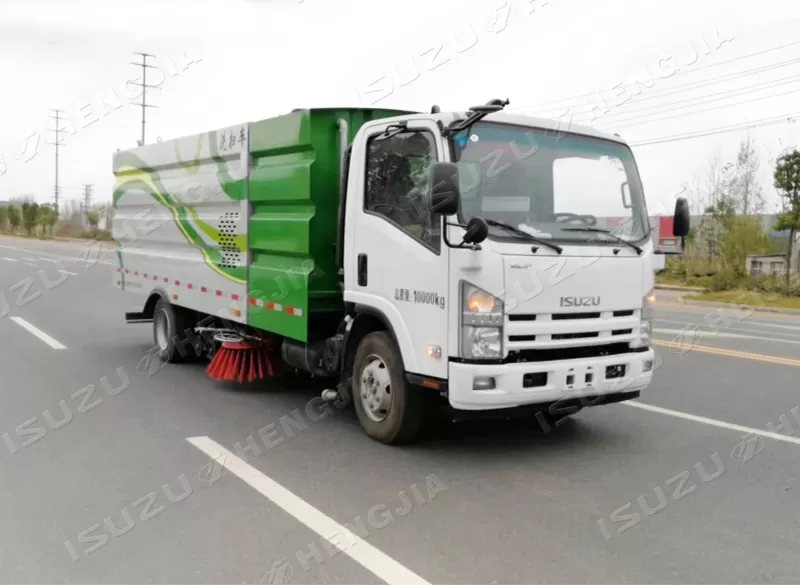

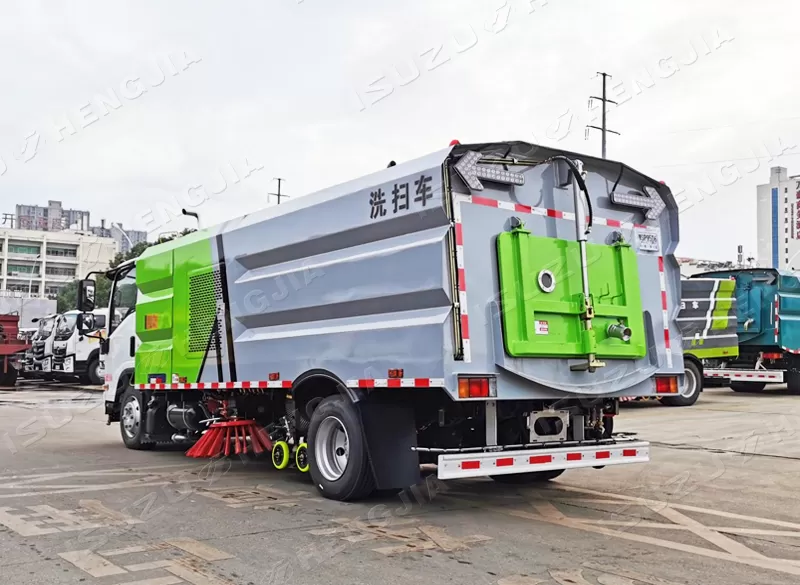

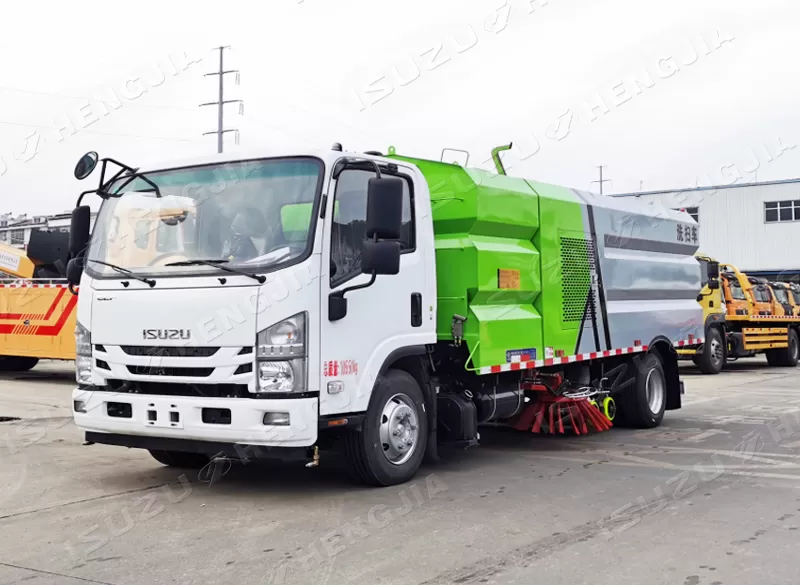

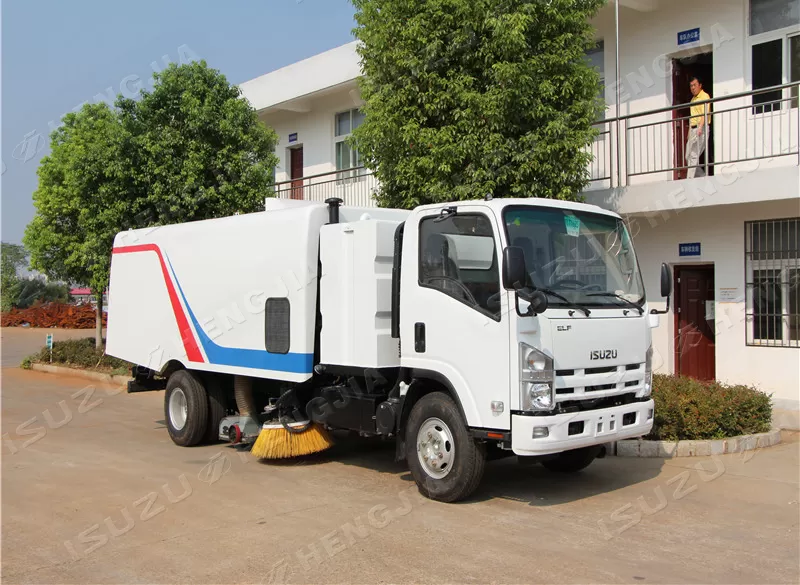

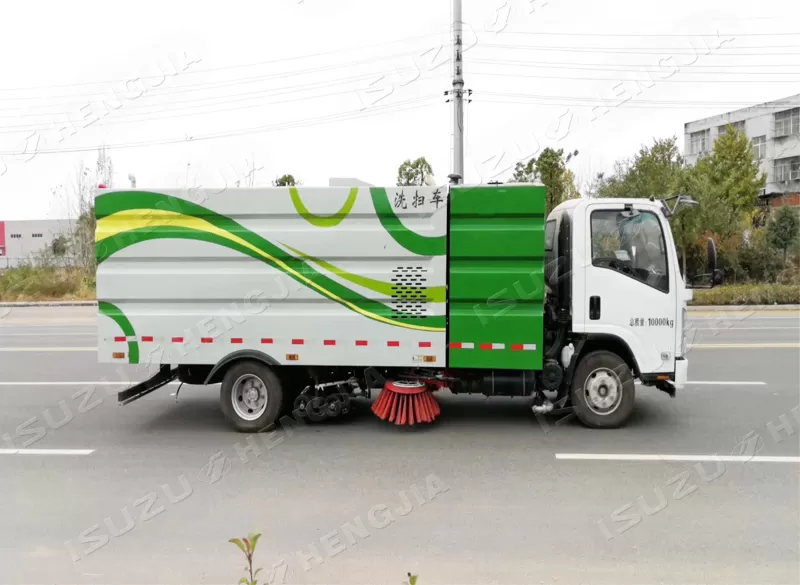

Road Sweeper Truck
| wheelbase | 3360mm-4175mm |
| drive | 4X2/4X4 |
| Engine model | 4HK1 |
| engine power | 189HP-205HP |
| load | 3.5T-4.5T |
| Box volume | 5.5m³-9.5m³ |
| Cabinet material | Q355 |
Product Configuration
| Components | The dedicated part consists of various components such as the trunk, auxiliary engine, fan, electromagnetic control valve, garbage bin, water bin, etc., which are connected through hydraulic and electronic control systems. | |||
| Main Components | Adopting high-power wear-resistant maintenance free centrifugal fan, it has no noise, high efficiency, large air volume, and long service life. High quality electronic control valves are adopted, with high reliability and long service life. | |||
| Duration | The cabin body is made of high-quality carbon steel sheet and has undergone anodizing treatment on the surface, making it sturdy and durable. We use wear-resistant and maintenance free centrifugal fans and imported solenoid valves, as well as well-known domestic brand disc scanning cycloidal motors, which have a long service life, stability, reliability, and low failure rate. | |||
| Structure Design | In terms of structure, the appearance is beautiful, with high positioned side skirts, curved transitions, and overall coordination and symmetry. Achieve low fuel consumption, low noise, and streamlined exterior design. The garbage bin adopts a double-layer inner stainless steel structure with a capacity of 7-8m. It is equipped with a filter screen plate inside, which can effectively prevent light floating objects such as leaves and plastic bags from blocking the air outlet and discharging dust | |||
| Vehicle Advantages | The Isuzu chassis and high-quality cabin are perfectly matched. In the development and design process, the chassis and trunk are matched and designed according to the whole vehicle thinking, fully utilizing their comprehensive performance, rather than simply piecing them together. The whole vehicle has a long service life, stability, reliability, and low failure rate. | |||
Vehicle Diagram

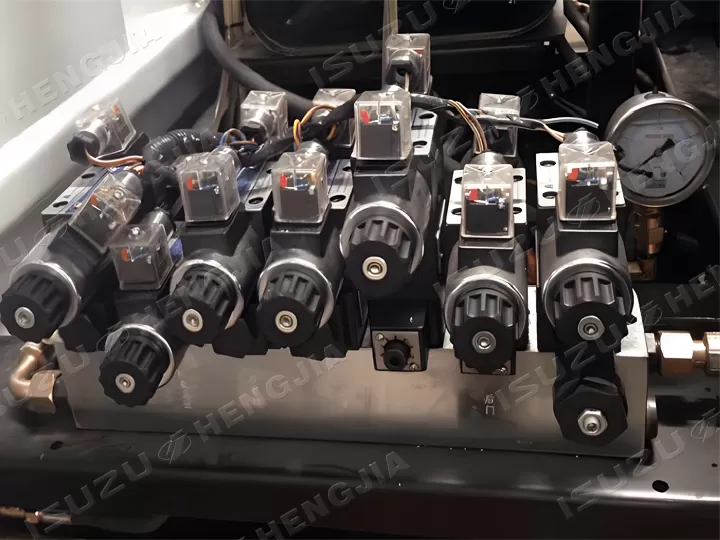

solenoid valve

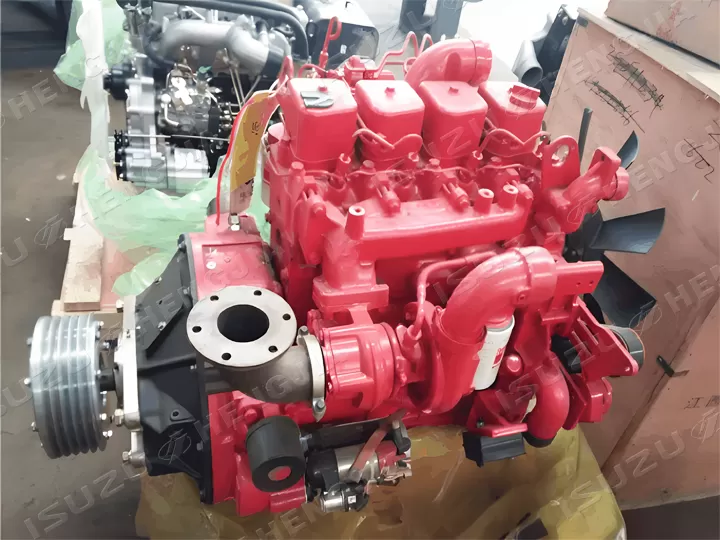

auxilliary enine

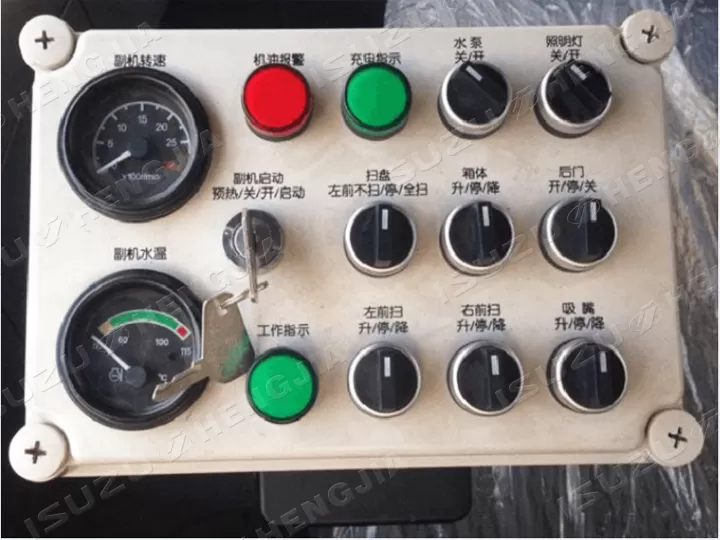

control panel

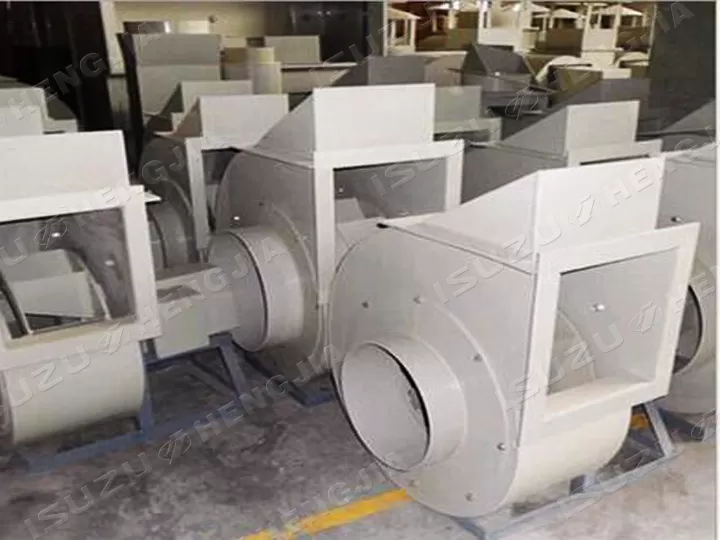

centrifuge

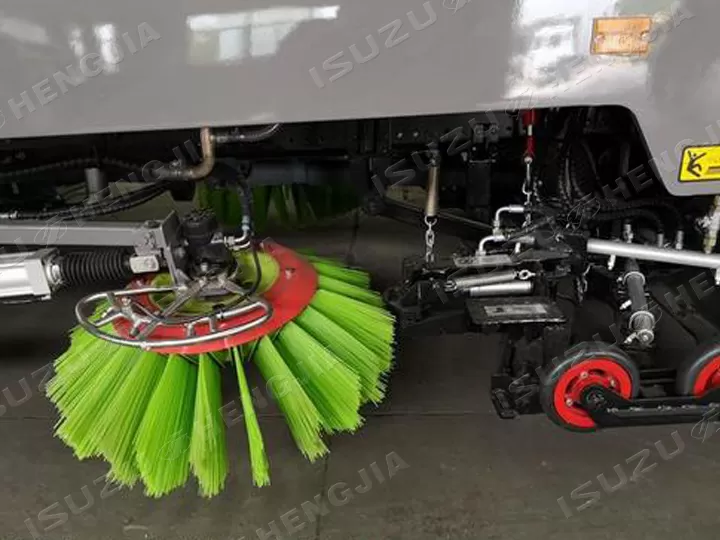

sweeping device

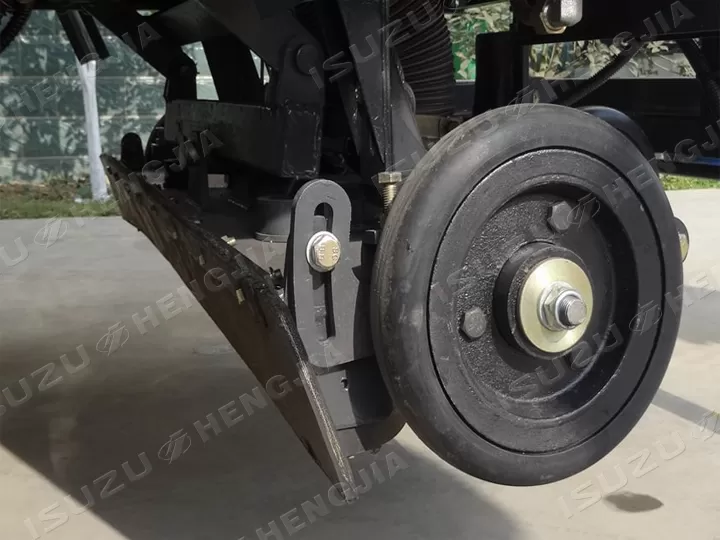

suction device

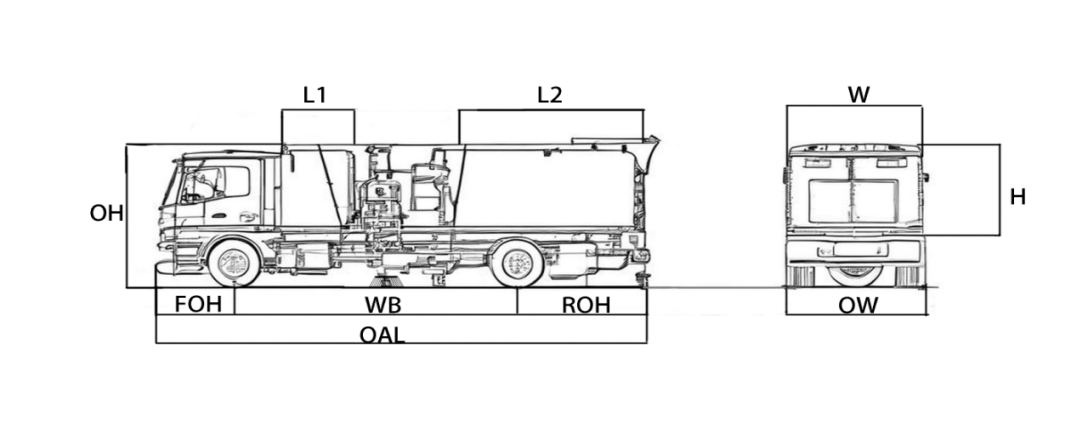

Vehicle Diagram
| MODEL | CABIN TYPE | WB | OAL | OW | OH | FOH | ROH | L1 | L2 | W | H | ||
| 700P | single | 3815 | 7000 | 2400 | 3500 | 1680 | 1650 | 1162 | 3500 | 2050 | 1900 | ||
| single | 4475 | 8050 | 2400 | 3500 | 1680 | 1650 | 1336 | 4025 | 2050 | 1900 | |||
| Above customized size refer to the factory details. | |||||||||||||
| PRODUCT NAME | ISUZU 700P sweeping truck | ||||
| whole parameter | Vehicle wheelbase (mm) | 3360 | 3815 | 4175 | |
| Vehicle size () | 7000x2200×2600 | 7050×2340×2600 | 7150×2240×2600 | ||
| Total weight (Kg) | 10550 | 10550 | 10550 | ||
| Curb weight (Kg) | 6050 | 6350 | 7180 | ||
| Number of passengers in the cab | 3 | 3 | 3 | ||
| Maximum speed | 110 | 110 | 110 | ||
| Tire specifications | 235/75R17.5 16PR | 235/75R17.5 16PR | 235/75R17.5 16PR | ||
| Number of tires | 6+1 | 6+1 | 6+1 | ||
| Emission standards | EUROⅤ、EUROⅥ | EUROⅤ、EUROⅥ | EUROⅤ、EUROⅥ | ||
| ENGINE+TRANSMISSION | Transmission model | Isuzu MLD | Isuzu MLD | Isuzu MLD | |
| Gear | 6Forward + 1 Reverse | 6Forward + 1 Reverse | 6Forward + 1 Reverse | ||
| 4HK1-TCG60 | 151kw/205hp | ○ | ○ | ○ | |
| 4HK1-TCG61 | 139kw/189hp | ○ | ○ | ○ | |
| special functions | Cabinet material | carbon+stainess steel | carbon+stainess steel | carbon+stainess steel | |
| Garbage bin capacity | 3 m³ | 6 m³ | 7 m³ | ||
| Clear water tank capacity | 2.5 m³ | 2 m³ | 2.5 m³ | ||
| Cleaning width (m) | 3.2 m | 3.2 m | 3.2 m | ||
| Cleaning speed (km/h) | 3-15km/h | 3-20km/h | 3-15km/h | ||
| Maximum cleaning capacity | 52500 mm/h | 52500mm/h | 52500 mm/h | ||
| Auxiliary engine | JMC/CUMMINS | JMC/CUMMINS | JMC/CUMMINS | ||
| Factory standards | Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; | Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; | Taiwan solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; | ||
| Remanrk：the detail spcifications refer to factory information, and customization service available | |||||
