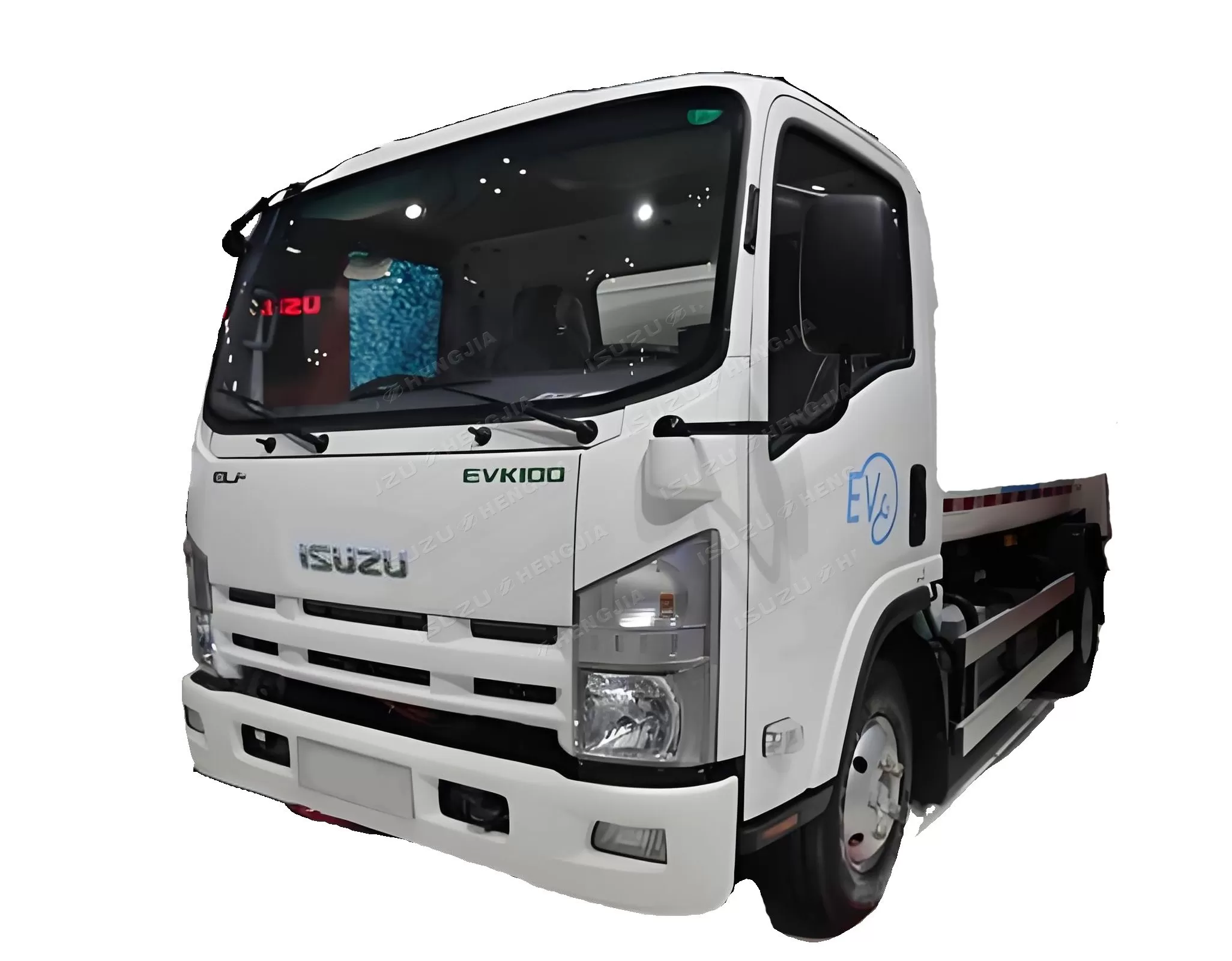

ISUZU NKR EV/EVK100 Pallet truck

Inquire Now Next Product

Product Configuration

body	The whole body is made of high carbon steel, with strong rigidity and strength, durable, not easy to deformation
sideboard	The left and right side panels are strengthened at a certain distance to improve the overall strength of the side panels
spray	Preferably domestic quality paint, strong adhesion, wear resistance, acid and alkali resistance, good heat resistance.
subframe	Effectively isolate road vibration, improve ride comfort
Professional customization	Seven years of modification experience, according to the needs of the car to customize the modification plan free of charge
Vehicle advantage	Isuzu chassis + quality cargo compartment perfect match. In the process of development and design, according to the vehicle thinking, the chassis, the body, the matching design, give full play to its comprehensive performance, not a simple patchwork.

Vehicle Diagram:

Vehicle Diagram :

Model	WB	OAL	OW	OH	FOH	ROH	L	W	H
EVK100	3360	5995	2200	2300	1015	1525	4250	1850	400
EVK100	3815	6800	2200	2300	1015	1835	5050	1850	400
The above sizes are for reference and can be customized according to requirements

Product name			Isuzu EVK100 Pallet truck
whole parameter	vehicle wheelbase(㎜)		3360	3815
	Vehicle size()		5995×2200X2300	6800×2200X2300
	Total weight (Kg)		4495/7300	7300
	Curb weight (Kg)		3085	3250
	Number of passengers in the cab		2	2
	Maximum speed		98	98
	Tire specifications		7.50R16LT 14PR	7.50R16LT 14PR
	Number of tires		6+1	6+1
Drive System	Model		YTD060W23	YTD060W23
	Type		Permanent magnet synchronous motor	Permanent magnet synchronous motor
	Rated/peak power (kw/rpm)		60/110	60/110
	Rated/peak torque (N.m/rpm)		310/1000	310/1000
Power battery	Type		Lithium iron phosphate	Lithium iron phosphate
	Energy Density Wh/kg		130.33	153.84
	Total power storage （kWh）		96.77Guoxuan	96.77Guoxuan
recharge mileage（km)			245 Full load isokinetic method	220Full load isokinetic method
Special performance	Box material	Q235	○	○
		Q345	○	○
		High strength steel	○	○
	Box volume		3.8 m³	4.5 m³
	Case size		4250×2200×400	5050×2200×400
	Factory standards		Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker	Bottom plate 3mm/ side plate 2mm, the overall rear fender is welded to the cargo box, left and right side protection, rear protection, and reverse cursor sticker
Note: Please contact us to confirm the detailed configuration. Customization is supported
