ISUZU F/FVZ Dump Truck

Inquire Now Next Product

Product Configuration

Structure	The double-bar middle top structure of the dump truck is adopted, which makes the lifting stable and easy to operate.

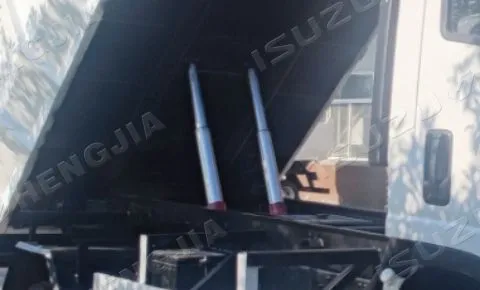

Durability	The oil cylinder has strong lifting force, and the lifting durability test reaches 20,000 times without oil leakage
Lifting angle	The lifting angle of the car body of some models can reach 48°, and the lifting and lowering time of the car body is ≤15 seconds, realizing fast and stable unloading.
Parts	The dumping mechanism adopts well-known domestic brands, with high reliability and less maintenance

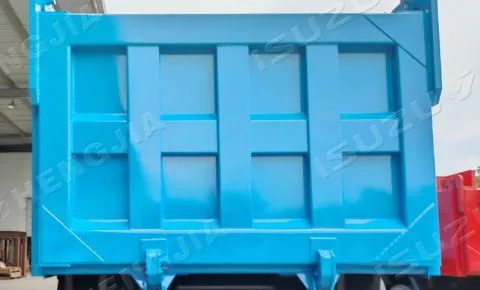

Box	The entire box is made of high-carbon steel, with strong rigidity and strength, durable and not easy to deform
Professional customization	Seven years of modification experience, free customization of modification plans according to vehicle needs
Vehicle advantages	Isuzu chassis + high-quality dump cargo box + domestic high-quality tilting mechanism are perfectly matched. During the development and design process, the chassis, body, and dumping system are matched and designed according to the whole vehicle concept to give full play to their comprehensive performance, not simply pieced together.

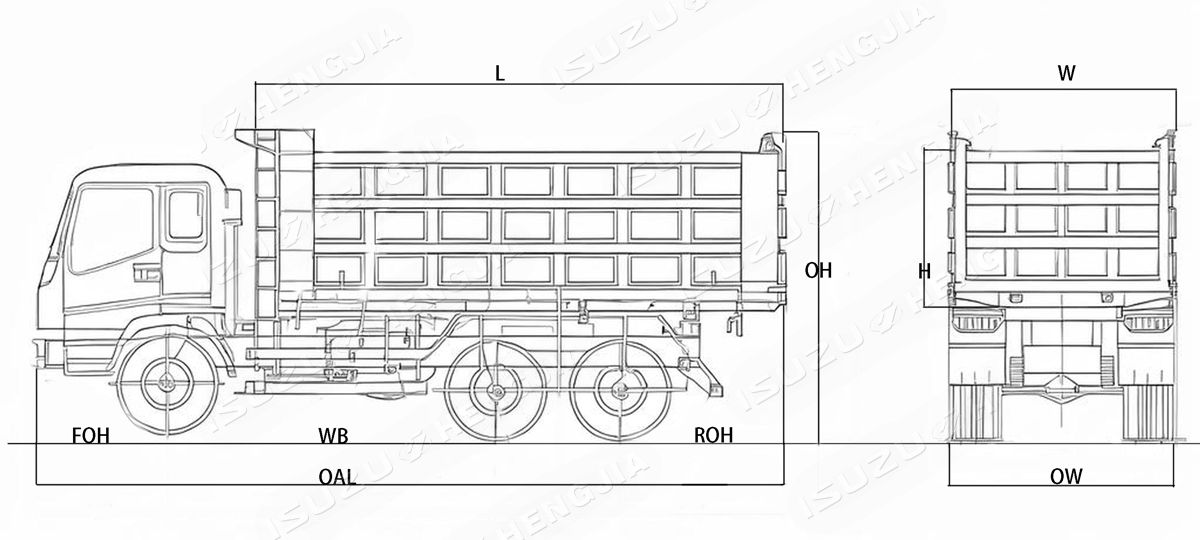

Vehicle Diagram

Vehicle Diagram

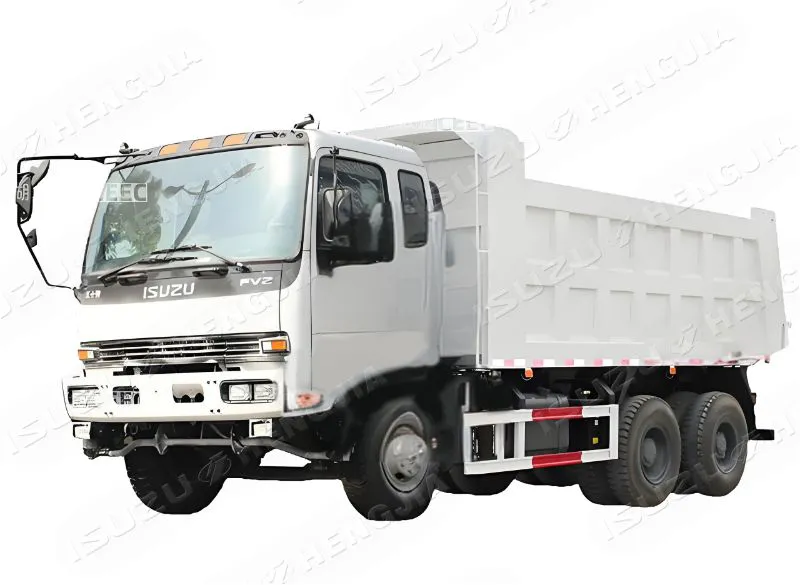

FVZ Dump Truck

Model	Cab type	WB	OAL	OW	OH	FOH	ROH	L	W	H
FVZ	Single row	4350+1370	8960	2540	3040	1335	1905	6500	2400	800
The above dimensions are for reference and can be customized according to needs

Product name			Isuzu FVZ dump truck
Vehicle parameters	Wheelbase (mm)		4350+1370
	Vehicle size()		8960X2540X3040
	Gross weight (Kg)		25000
	Curb weight (Kg)		9750
	Number of passengers in the cab		3
	Top speed		105
	Tire specifications		295/80R22.5 16PR
	Number of tires		10+1
	Emission standards		National 5, National 6
Transformation parameters	Transmission model		Fast 9JS119TA
	Gear gear		9Forward +1 Reverse
	4HK1-TC50	151kw/205hp	\
	4HK1-TCG60	151kw/205hp	○
	4HK1-TCG62	164kw/224hp	○
Dedicated performance	Cabinet material	Q235	○
		Q345	○
		High-strength steel	12.5 m³
	Lifting method		6560×2400×600

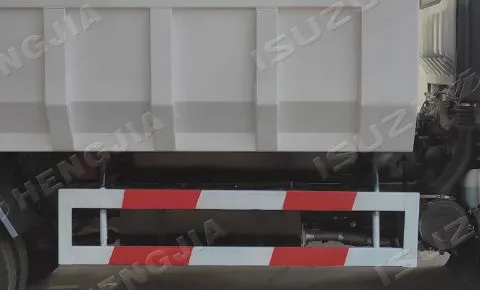

	Box volume		The bottom plate is 4mm / side plate 3mm, and the integral rear fender is welded on the cargo box, left and right side protection, rear protection, and reflective labels
	Cabinet size		6500×2400×800
	Factory standards		The bottom plate is 4mm / side plate 3mm, the flip mechanism through the shaft, the integral rear fender is welded on the cargo box, the left and right side protection, the rear protection, and the reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
