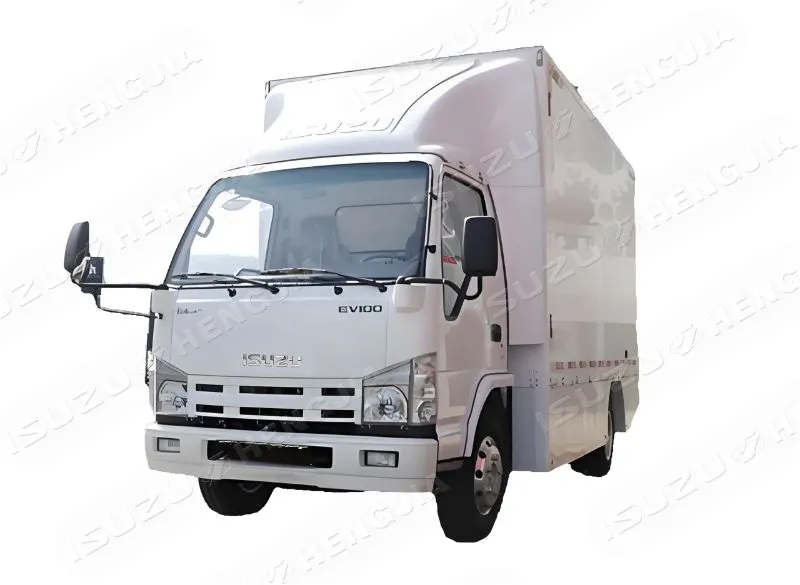

ISUZU NKR EV/EV100 Box Truck

Wheelbase	3360mm-3815mm
Drive motor model	YTD060W23
Generator power	60KW
Load	2T-4T
Power battery storage capacity	96.77kWh-106.95kWh
Cruising range	330-433km
Box volume	14m³-16m³

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans can be made according to vehicle needs

Vehicle Diagram

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
EV100	Single row	3360	5995	1950	2700	1015	1620	4250	1950	1900
EV100	Single row	3815	6800	2050	2700	1015	1970	4950	1900	1900
Note: The above dimensions are for reference and can be customized according to needs

Wheelbase	3360	3815
Box volume	14 m³	16 m³
Cabinet size	4250×1900×1900	4950×1980×1900
Drive System(kw/rpm)）	60/110	60/110
Cruising range (km)	330km/365km/433km	210km/255km
Cabinet material	Steel corrugated / aluminum flat / composite panel

Product name			Isuzu EV100 Box Truck
Vehicle parameters	Wheelbase (mm)		3360			3815
	Vehicle size()		5995X1950X2790			6800X2050X2900
	Gross weight (Kg)		4495/7300			7300
	Curb weight (Kg)		2750			3050
	Number of passengers in the cab		2			2
	Top speed		98			98
	Tire specifications		7.00R16LT 8PR			7.00R16LT 8PR
	Number of tires		6+1			6+1
Drive System	Model		YTD060W23			YTD060W23
	Type		Permanent magnet synchronous motor			Permanent magnet synchronous motor
	Rated/peak power (kw/rpm)		60/110			60/110
	Rated/peak torque (N.m/rpm)		310/1000			310/1000
Power battery	Type		Lithium iron phosphate			Lithium iron phosphate
	Energy Density Wh/kg		130.33	146.7	153.84	153.84	130.33
	Total power storage（kWh）		96.77Guoxuan	81.14Ningde	106.95Ningde	106.95Ningde	96.77Guoxuan
Recharge mileage（km)			365 Full load isokinetic method	330 Full load isokinetic method	433 Full load isokinetic method	255Full load isokinetic method	210Full load isokinetic method
Dedicated performance	Cabinet material	Steel corrugated	○			○
		Composite panels	○			○
		Aluminum flat plate	○			○
	One-sided door		○			○
	Double-leaf side doors		○			○
	Box volume		14 m³			16 m³
	Cabinet size		4250×1900×1900			4950×1980×1900
	Factory standards		The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label			The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
