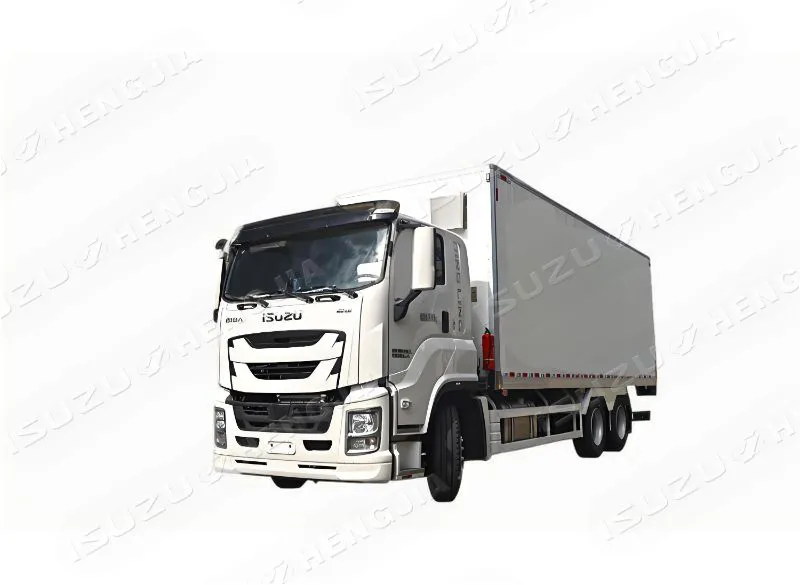

6X4 GIGA VC66 Box Truck

Wheelbase	3985+1370mm-5820+1370mm
Drive	6X4/6X6
Engine model	6UZ1/6WG1
Engine horsepower	350HP-520HP
Load	22T-24T
Box volume	34m³-56m³
Box material	Steel corrugated/aluminum flat/composite board

Inquire Now Next Product

Product Configuration

Box body	Using polyester wet board making process and fully enclosed polyurethane board bonding method, the thermal insulation performance reaches the national A-level standard.
Box board	The inner and outer wall panels are made of domestic high-quality nano-glass (non-light-absorbing, good heat insulation, strong hardness, and anti-oxidation), and the middle insulation material is imported polyurethane with no gap filling;
Chassis	The bottom of the box is an aluminum alloy patterned plate or, with a 150mm overall bend skirt, which has better protection and sealing performance
Accessories	The perimeter of the box is made of aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 anti-collision rubbers, stainless steel door frames, stainless steel hinges, and energy-saving LED lights in the box.
Others	The thickness of the box can be selected, and the inner and outer wall panels can be selected from fiberglass, color steel, stainless steel, and aluminum alloy.
Process quality	The latest fully sealed insulation box, lightweight, high strength, high insulation, and long service life
Professional customization	Seven years of modification experience, free customization of modification plans can be made according to vehicle needs

Vehicle Diagram

Rain test
Imported insulation board
Pressure plate machine
Process quality
Professional customization
Stainless steel lock

Vehicle Diagram

Refrigerated Truck

Model	Cab type	WB	OAL	0W	OH	FOH	ROH	L	W	H
6X4 VC66	Row in half	3985+1370	7800	2550	4000	1370	1175	5400	2400	2600
		4600+1370	9900	2550	4000	1370	2560	7700	2400	2600
		5100+1370	10500	2550	4000	1370	2660	9000	2400	2600
		5820+1370	11500	2550	4000	1370	2840	9000	2400	2600
Note: The above dimensions are for reference and can be customized according to needs

Isuzu 6X4 VC66 Box Truck
wheelbase	3985+1370	4600+1370	5100+1370	5820+1370
Box volume	33.7 m³	48 m³	50 m³	56 m³
Cabinet size	5400×2400×2600	7700×2400×2600	8000×2400×2600	9000×2400×2600
motor	380hp/420hp/460hp/520hp	380hp/420hp/460hp/520hp	380hp/420hp/460hp/520hp	380hp/420hp/460hp/520hp
Gearbox	ZF 8S2330TD	ZF 8S2330TD	ZF 8S2330TD	ZF 8S2330TD
Cabinet material	Steel corrugated / aluminum flat / composite panel	Steel corrugated / aluminum flat / composite panel	Steel corrugated / aluminum flat / composite panel	Steel corrugated / aluminum flat / composite panel

Product name			Isuzu 6X4 VC66 Box Truck
Vehicle parameters	Wheelbase (mm)		3985+1370	4600+1370	5100+1370	5820+1370
	Vehicle size()		7800X2550X4000	9900X2540X4000	10500X2540X4000	11500X2540X4000
	Gross weight (Kg)		35000	35000	35000	35000
	Curb weight (Kg)		11840	12200	12900	13550
	Number of passengers in the cab		3	3	3	3
	Top speed		105	105	105	105
	Tire specifications		385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR	385/65R22.5 20PR/ 315/80R22.5 20PR
	Number of tires		10+1	10+1	10+1	10+1
	Emission standards		National VI	National VI	National VI	National VI
Transformation parameters	Transmission model		ZF 8S2330TD	ZF 8S2330TD	ZF 8S2330TD	ZF 8S2330TD
	Gear gear		8Forward +2 Reverse	8Forward +2 Reverse	8Forward +2 Reverse	8Forward +2 Reverse
	6WG1-TCG60	309kw/420hp	/	/	○	/
	6WG1-TCG61	338kw/460hp	/	○	○	○
	6WG1-TCG62	381kw/520hp	/	○	/	/
	6UZ1-TCG61	278kw/380hp	○	○	/	○
Dedicated performance	Cabinet material	Steel corrugated	○	○	○	○
		Composite panels	○	○	○	○
		Aluminum flat plate	○	○	○	○
	One-sided door		○	○	○	○
	Double-leaf side doors		○	○	○	○
	Box volume		33.7 m³	48 m³	50 m³	56 m³
	Cabinet size		5400×2400×2600	7700×2400×2600	8000×2400×2600	9000×2400×2600
	Factory standards		The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label	The bottom plate is bent as a whole 150mm skirt, 304 stainless steel hardware, left and right side protection, rear protection, box rain test, reflective label
Note: Please contact us for detailed configuration for confirmation, support customization
